STANDARD REFRIGERATOR SIZES & DIMENSIONS GUIDE
Whether you’re getting ready to remodel your kitchen for a fresh space to create or simply replacing an older refrigerator with a new one, finding the right model takes a little prepping. With the right refrigerator measurements, you can find the perfect refrigerator to complement your kitchen for all your culinary creations. Use this guide to learn how to measure refrigerator dimensions as well as to familiarize yourself with the different refrigerator styles and sizes.
Note: When buying or installing a new refrigerator, always make sure to consult the owner’s manual and installation instructions for model-specific information.
WHAT ARE STANDARD REFRIGERATOR SIZES?
Standard refrigerator sizes vary due to the variety of configurations and styles. However, for most refrigerators, the width can range from 24 to 40 inches, height can range from 61 to 72 inches, and depth typically ranges from 28 to 35 inches. In terms of capacity, typical refrigerators range from 20-25 cubic feet.

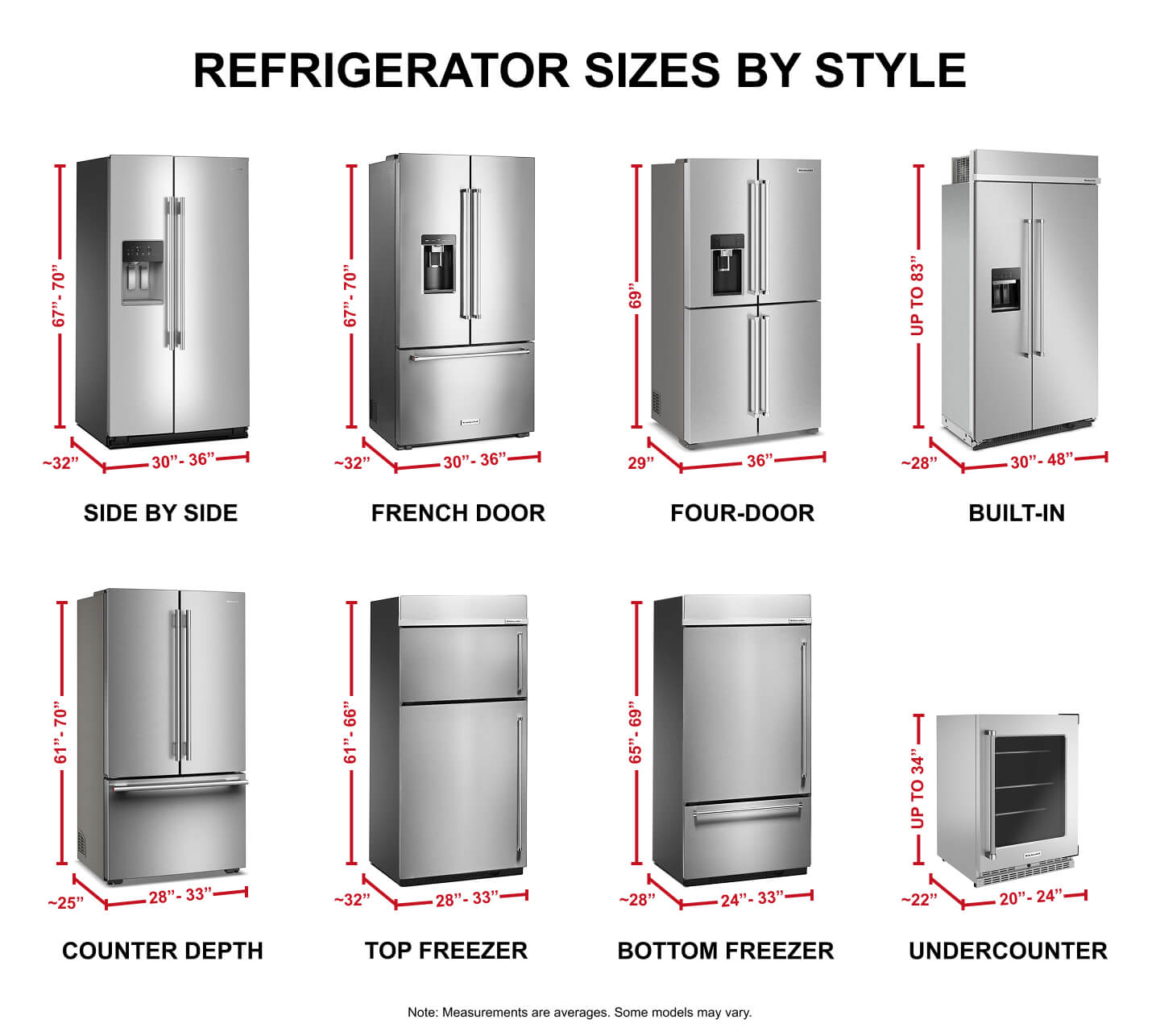

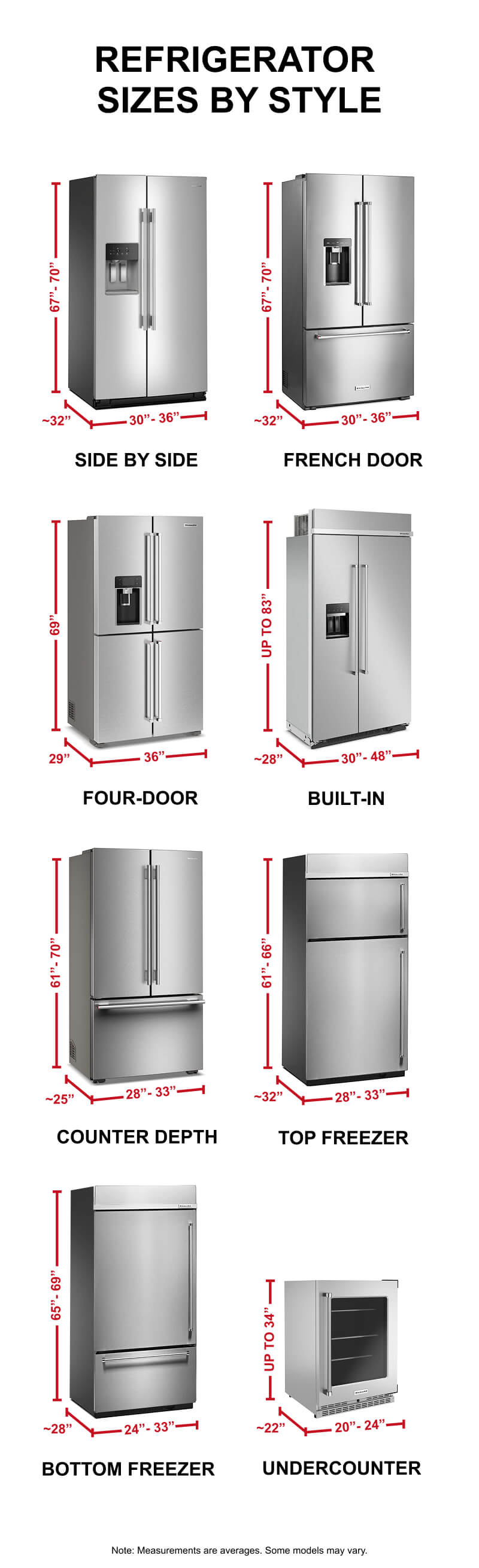

REFRIGERATOR SIZE CHART & DIMENSIONS BY STYLE
When considering a refrigerator purchase, it's important to note that refrigerators come in various types and styles, each with different measurements and features. The dimensions for your new refrigerator will depend on the style you choose, so it's crucial to review the measurements associated with each type to ensure compatibility with your space and needs. Use this overview of refrigerator dimensions by style to help narrow your search.
SIDE-BY-SIDE REFRIGERATOR DIMENSIONS
These refrigerators range from 30 to 36 inches wide, 67 to 70 inches tall and 29 to 35 inches deep. KitchenAid offers a wide selection of stylish side-by-side refrigerators designed to not just solve all your storage needs, but to help preserve your fresh ingredients with features on select models such as the Preserva® Food Care System.
SHOP KITCHENAID® SIDE-BY-SIDE REFRIGERATORS

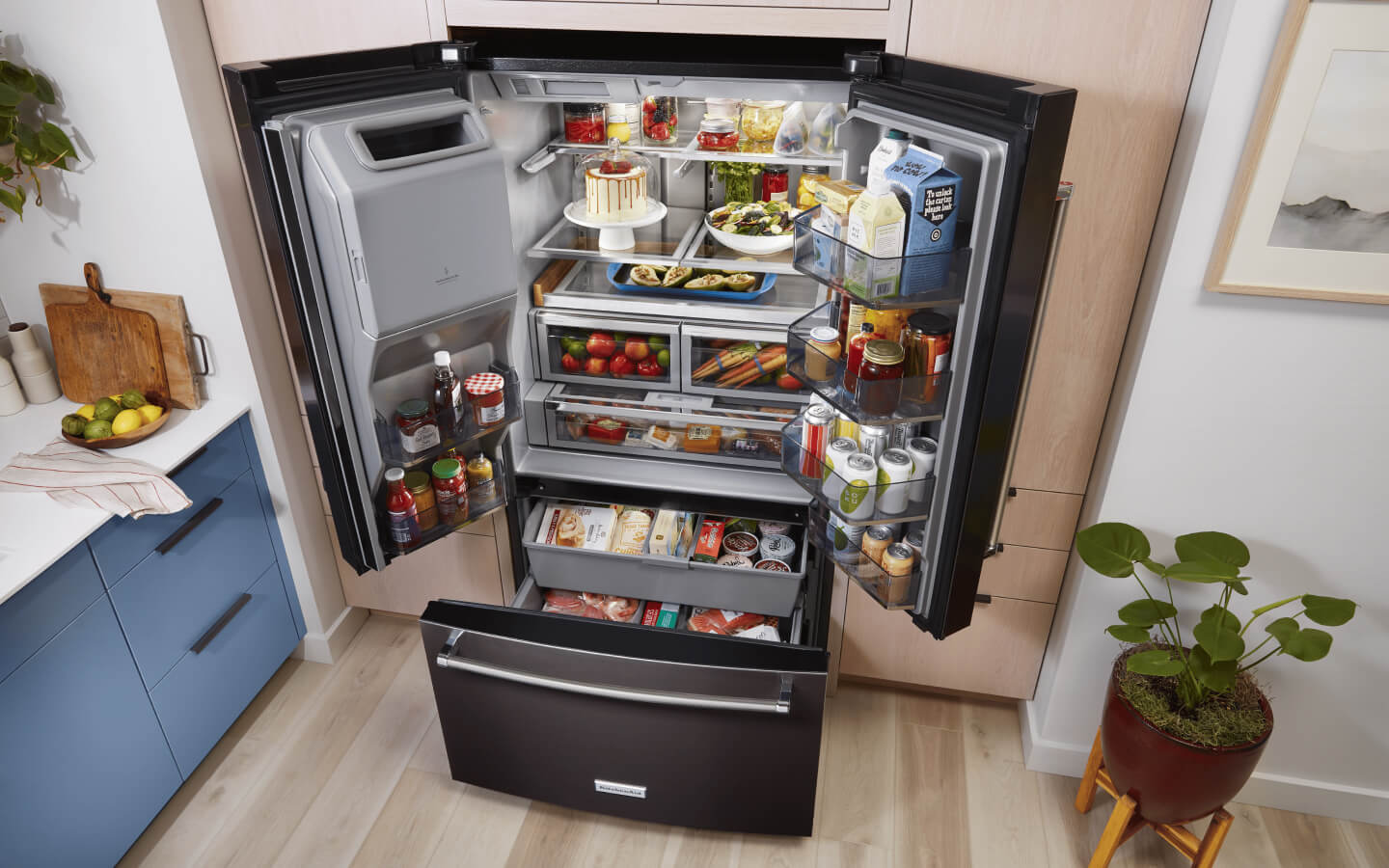

FRENCH DOOR REFRIGERATOR DIMENSIONS
Built with narrower doors that take up less space when opened for a better flow of your kitchen, this style has a width that can range from 30 to 36 inches, 67 to 70 inches in height, and 29 to 35 inches in depth. You can also shop KitchenAid® French Door Counter-Depth Refrigerators that offer a more seamless and elevated look to your kitchen.
SHOP KITCHENAID® FRENCH DOOR REFRIGERATORS
FOUR DOOR REFRIGERATOR DIMENSIONS
Four door refrigerators are built with four doors and three cavities to keep fresh and frozen ingredients organized and easy to locate. Additionally, the right bottom cavity allows you to turn your right-hand freezer into a refrigerator at the touch of a button. With 15 different temperature options and 4 speciality presets, you can adjust the zone from -5° deep freeze to 37° for fresh produce and up to 41° cellar temps for wine or other specialty beverages.

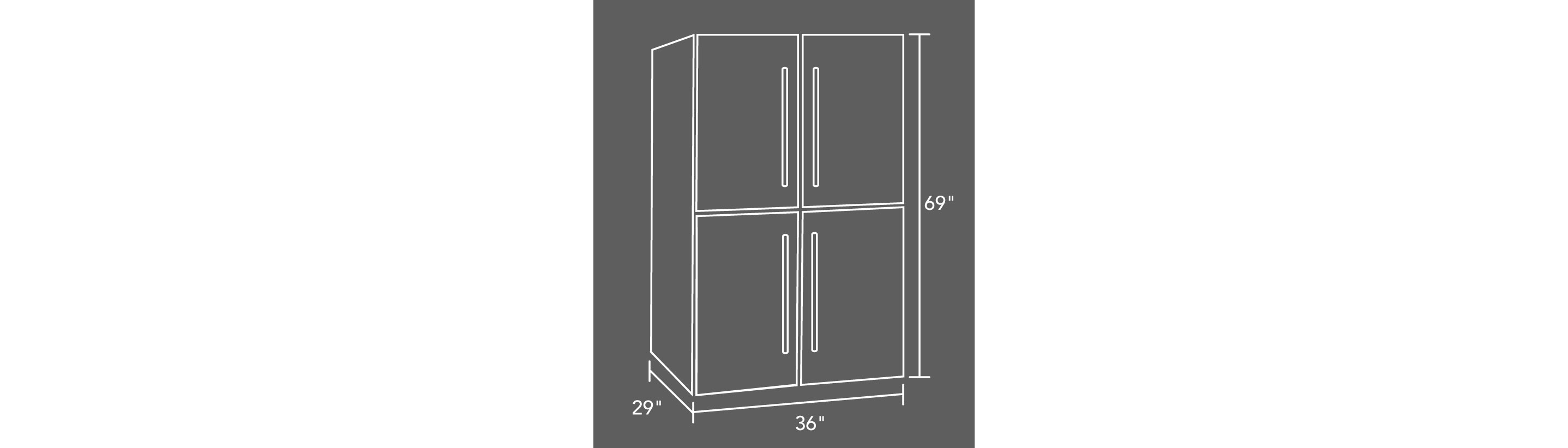

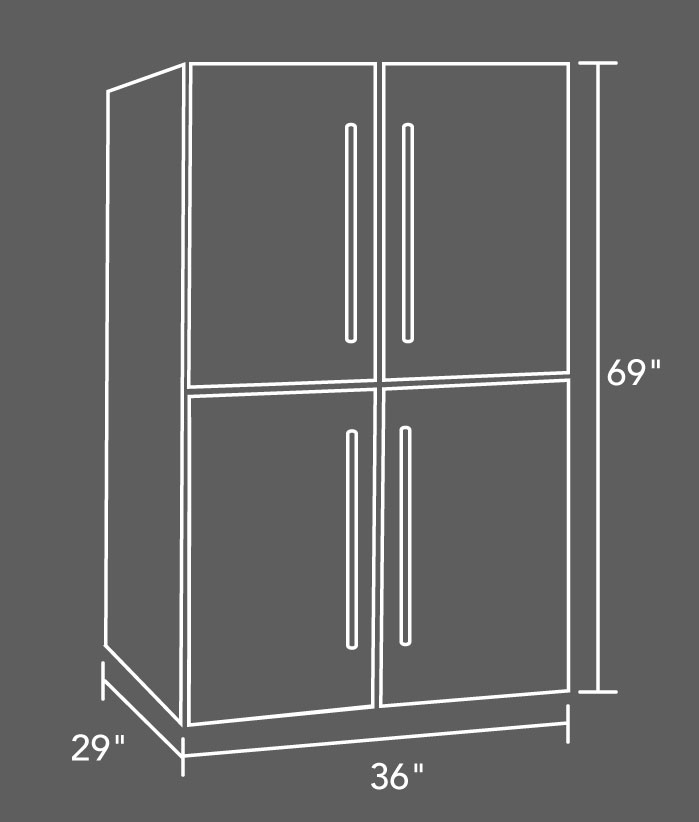

This special configuration is available in a 36 inch width, 69 inches in height and 29 in depth.
SHOP KITCHENAID® FOUR DOOR REFRIGERATORS
BUILT-IN REFRIGERATOR DIMENSIONS
Similar to counter-depth refrigerators, this style is designed to offer you plenty of storage capacity while also providing clean lines and more of a designer feel to your space. These models can be quite large, with widths generally ranging from 36 to 48 inches, height topping upwards of 83 inches, and a depth of about 28 inches.
KitchenAid® Built-In Refrigerators are the perfect addition to your kitchen, storing all your items at the perfect temperature, so when inspiration strikes, you can count on having fresh ingredients on hand. Learn more about what a built-in refrigerator is and the benefits it can bring to your kitchen.
SHOP KITCHENAID® BUILT-IN REFRIGERATORS
COUNTER-DEPTH REFRIGERATOR DIMENSIONS
Like built-in refrigerators, you can find counter-depth refrigerators in several styles, including side-by-side and French door. Their depth is around 24 to 25 inches—the standard for most kitchen counters. These refrigerators are meant to sit flush with counters and cabinets for a more seamless and custom design to your kitchen. They may also be slightly taller and wider to make up for the shallower depth.
SHOP KITCHENAID® COUNTER-DEPTH REFRIGERATORS
UNDERCOUNTER REFRIGERATOR DIMENSIONS

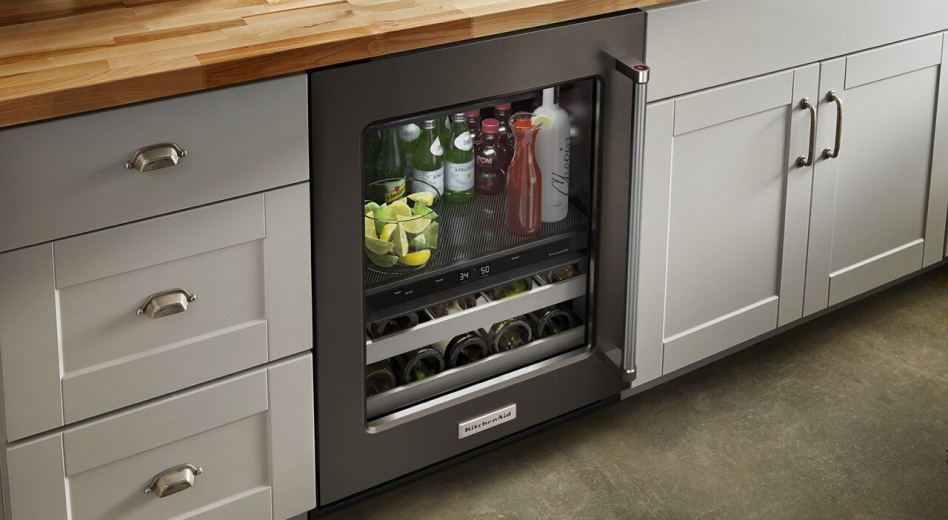

Undercounter refrigerators are usually around 34 inches tall, 20 to 24 inches wide, and around 18 to 26 inches deep. If you're passionate about both entertaining guests and culinary creation, discover KitchenAid's selection of undercounter refrigerators. They provide ample space to chill your preferred beverages and ingredients, ensuring everything is ready for you and your guests.
SHOP KITCHENAID® UNDERCOUNTER REFRIGERATORS
TOP FREEZER REFRIGERATOR DIMENSIONS
As the name suggests, this type of refrigerator has the freezer compartment on top, and standard dimensions range from 28 to 33 inches in width, 61 to 66 inches in height and 28 to 35 inches in depth.
BOTTOM FREEZER REFRIGERATOR DIMENSIONS
Bottom freezers refrigerators, which are designed to keep food within easy reach, can range from 24 to 33 inches in width, 65 to 69 inches in height and 24 to 33 inches in depth. Select KitchenAid® Bottom Freezer Refrigerators feature a metal wine rack, which provides a durable storage solution for up to four bottles of wine or 2-liter containers.
SHOP KITCHENAID® BOTTOM FREEZER REFRIGERATORS

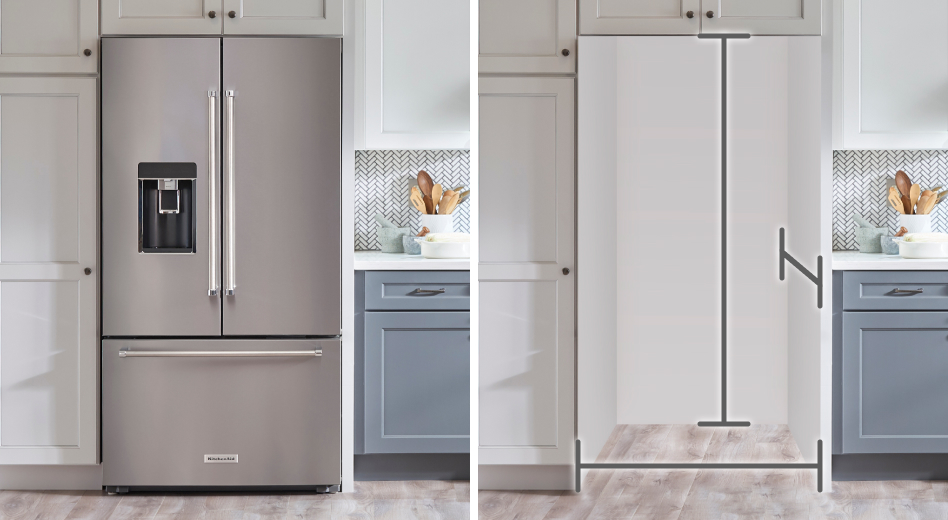

HOW TO MEASURE FOR A REFRIGERATOR
Discover the ideal refrigerator dimensions for your kitchen space with these instructions. Measure both cabinet cut-outs and surrounding areas for a more seamless fit.
SUPPLIES
- Paper
TOOLS
- Measuring tape
- Pen

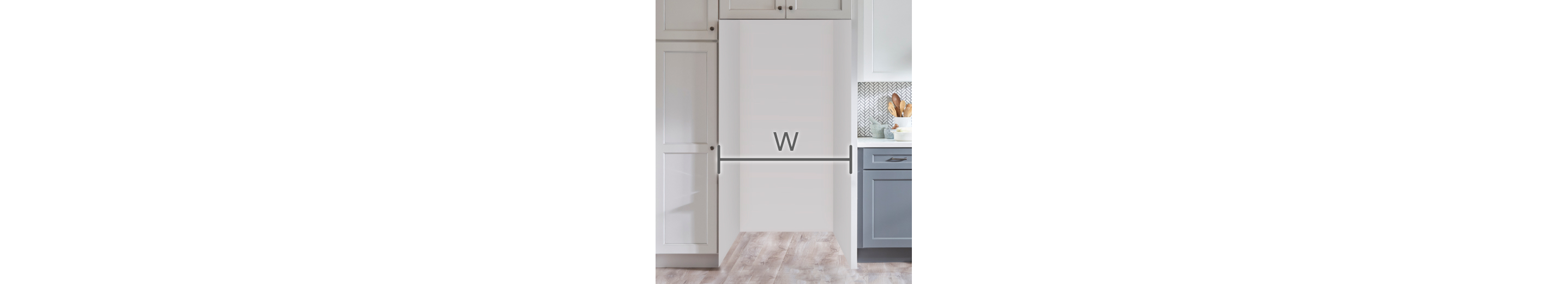

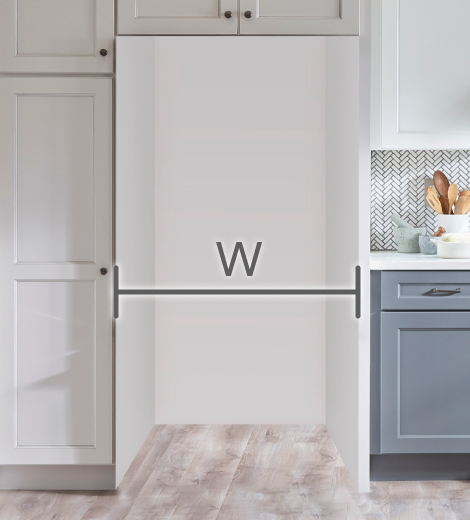

1. Measure the Width
With your measuring tape, find the distance from wall to counter, from cabinet to cabinet, or from whatever will be on either side of the refrigerator space.

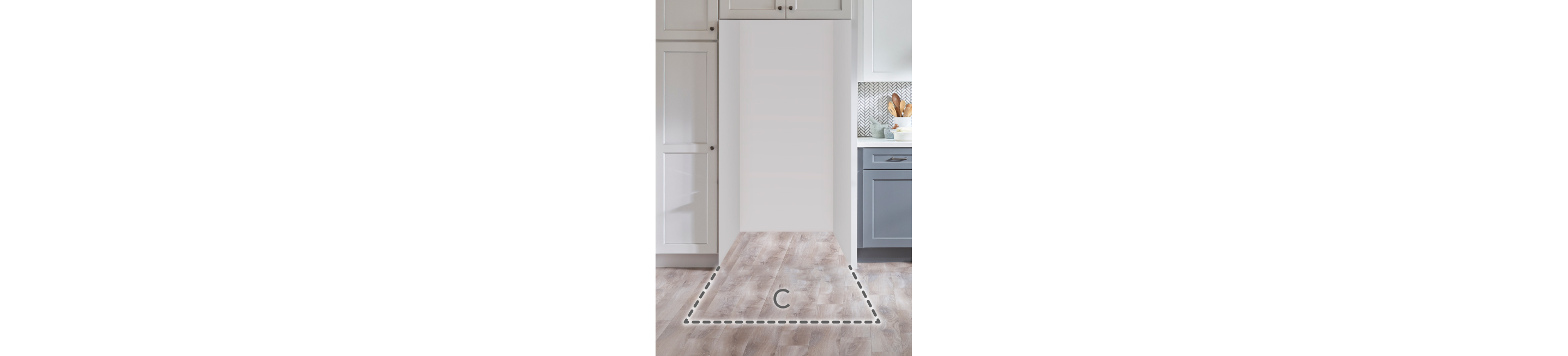

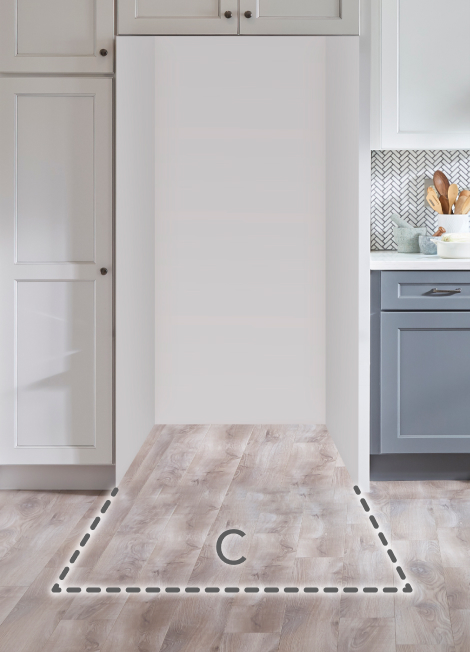

2. Measure Space Clearance
You’ll want to measure the space in front of the refrigerator to make sure there’s enough room for the doors and drawers to open fully.
HOW MUCH SPACE DOES A REFRIGERATOR NEED AROUND IT?
If your refrigerator will be positioned next to a wall, ensure you have anywhere from 2½ to 4 inches between the wall and the refrigerator so the doors can swing open without obstruction.

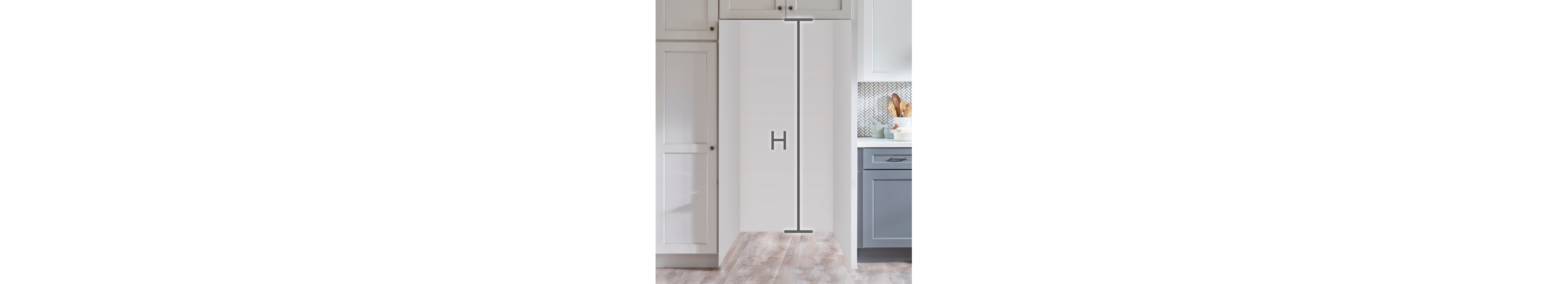

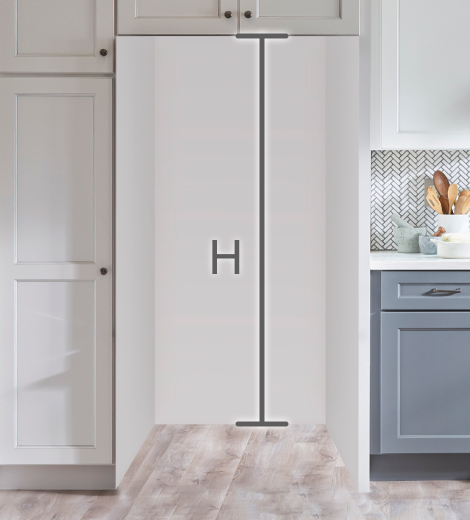

3. Measure the Height
If you have cabinets above where your refrigerator will go, measure from the floor to the bottom of the cabinets. You’ll want to do this twice, as some older houses may have settled over the years, leading to imperfect angles. First, measure from the floor to the front of the cabinets and again from the back of the space, top to bottom. If the measurements are different, use the shorter of the two.

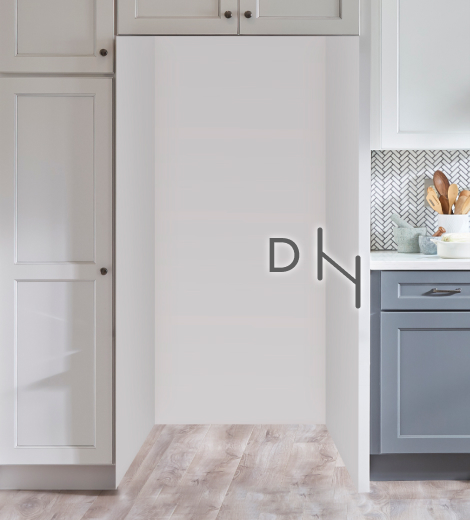

4. Measure the Depth
Since refrigerators come in two different depths, you’ll first have to decide if you want a standard-depth or counter-depth refrigerator. Once you've selected the style you want:
Standard-Depth Refrigerator - Measure from the wall to the front edge of your cabinets. Standard-depth refrigerators typically extend about six additional inches past standard kitchen cabinetry.
Counter-Depth Refrigerator - Measure from the wall to the front edge of your cabinets. The cabinet of your counter-depth refrigerator should be flush with the rest of the kitchen cabinetry. Keep in mind that the door will still protrude past the front of your cabinets by about 3 inches.
If an island is situated in front of your preferred refrigerator spot, it's crucial to measure the space from the refrigerator's front to the island. This helps ensure that doors and drawers can open freely without interference. This is true for anything you plan to permanently place in front of your refrigerator, like a kitchen cart or stand alone cabinet.

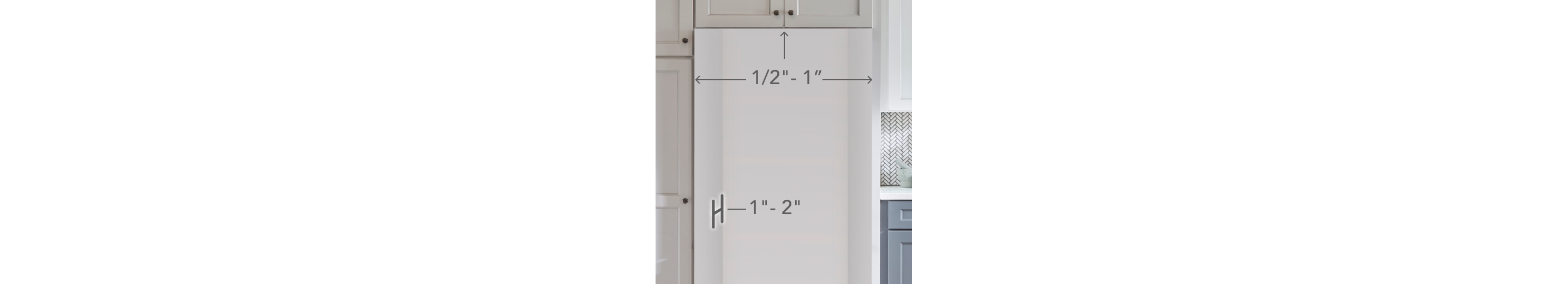

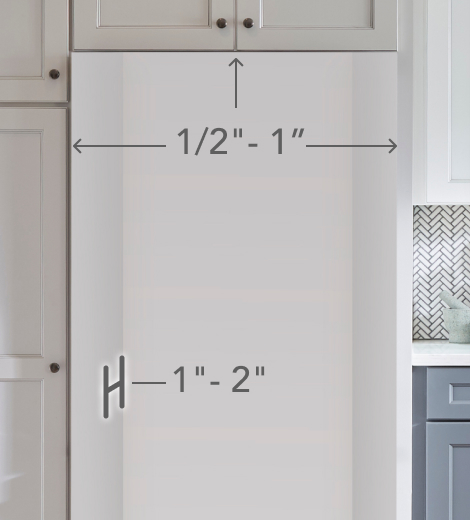

5. ALLOW ENOUGH SPACE FOR VENTILATION
There should also be enough room for clearance and proper ventilation so that your new refrigerator can run properly. A minimum clearance of one to two inches will be needed from the wall to the back of the refrigerator, as well as an additional ½ inch to one inch on either side and on top of the refrigerator.
6. Measure the Path to Install the Refrigerator
Refrigerators aren’t necessarily small, so to make sure that you can get your new refrigerator inside your kitchen, map out and measure the path from the entrance of the house to the installation spot. Make sure to note the width of every hallway and doorway in the delivery path. If the spaces are narrow and a tight squeeze, removing the refrigerator doors can sometimes give you some extra room to work with.

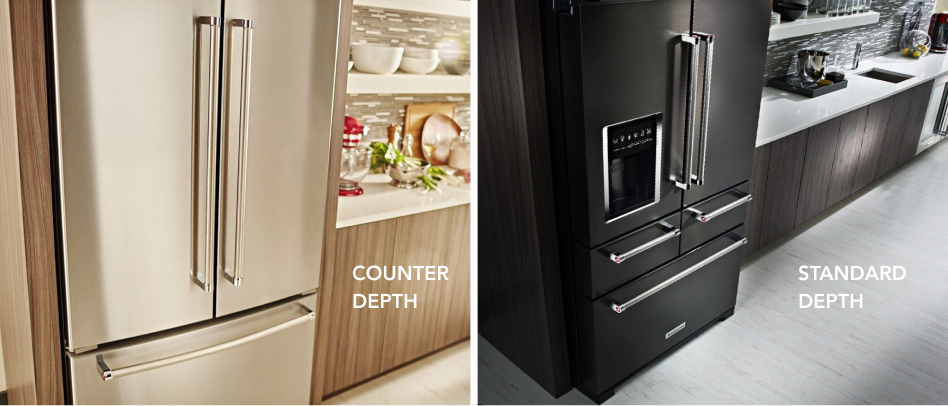

What is the Difference Between Counter-Depth and Standard Depth Refrigerator Sizes?
The biggest difference is that counter-depth refrigerators are typically shallower than standard-depth refrigerators. Because counter-depth fridges are meant to provide a seamless look to your kitchen, they will stand nearly flush with your cabinetry and counters. They may also have a slightly smaller footprint, giving you more room to move freely and comfortably around your kitchen.
How to Measure for an Undercounter Refrigerator
Measuring for an undercounter refrigerator follows the same process as any other type of refrigerator. Since undercounter refrigerators usually go in between kitchen cabinets, measure the height, width and depth of the cabinet cut-out where the refrigerator will go. Add half an inch of space for ventilation on each side as well as at the back, for ventilation.
WHAT SIZE REFRIGERATOR DO I NEED?
To determine the size of the undercounter refrigerator you need, consider the available space where you intend to place it. Once you have these measurements, you can search for undercounter refrigerators that not only match your space constraints, but also have the storage space you need.
