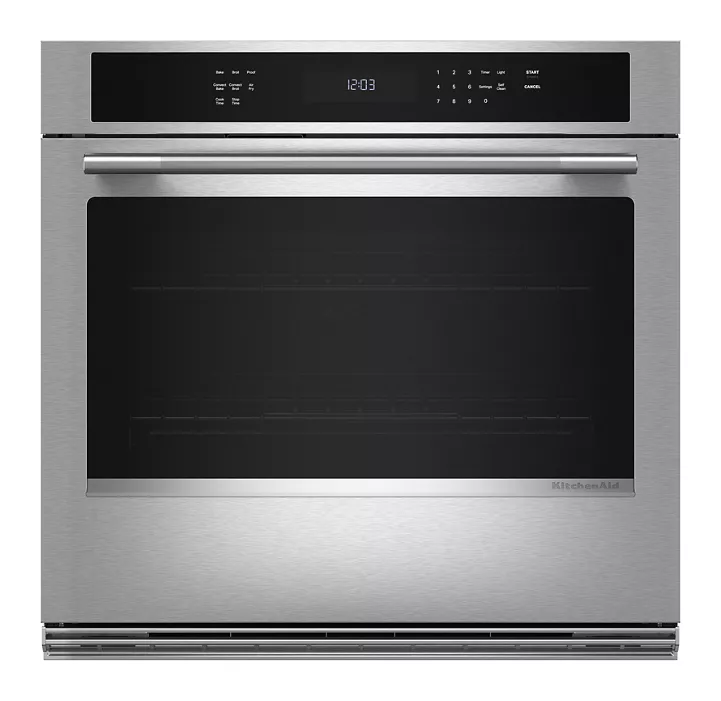

30-inch Electric Single Wall Oven with No Preheat Air Fry Mode - PrintShield™ Finish

Model: KOES530SPS

Model: KOES530SPS

Appliance Color

PrintShield Stainless

PrintShield Stainless with Matching Hardware

Additional Hardware Kit
Personalize your appliance with optional handle and knob accessory kits.
Already have the appliance? Shop Compatible Hardware Kits

Key Features

Offers

OR

Temporarily out of stock
Provide your ZIP Code to check availability in your area.
Credit Card icon PayPal icon ApplePay icon Affirm icon

Earliest Estimated Standard Delivery (FREE) :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Earliest Estimated Standard Delivery (FREE) :

Earliest Estimated Express Delivery () :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Additional services

Select these at checkout
Delivery Services Learn More
Protection Plan (Optional)
Whirlpool Appliance Care service plans are provided by Domestic & General USA Services LLC. However, in Florida and Washington it is Domestic & General USA Inc. 866-333-3134, 122 South Michigan Avenue, Suite 1390, Chicago, IL 60603. Whirlpool Corporation and Domestic & General are independent corporations and not part of the same group. Domestic & General’s use of Whirlpool Corporation’s trademarks is with permission. The plans are service contracts and not insurance. Protection Plan Benefits include:
  • If We Can’t Fix It, We Replace It with a Brand New One
  • Protection planBreakdown Protection If Your Appliance Stops Working
  • No Out of Pocket Repair Costs
  • Serviced by our Network of Factory Certified Technicians
  • Factory Certified Parts
Flexible Appliance Protection Plans, offered by Domestic & General Terms and Conditions
Limited Standard Warranty - Included,
Compatible Accessories
Frequently bought together
Warming Drawer Heat Deflector, Stainless Steel, fits MOES6030, MOED6030, MOEC6030, W0ES3030, WOED3030, and WOEC3030
Warming Drawer Heat Deflector, Stainless Steel, fits MOES6030, MOED6030, MOEC6030, W0ES3030, WOED3030, and WOEC3030

Overview

30-inch Electric Single Wall Oven with No Preheat Air Fry Mode - PrintShield™ Finish

Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air to cook with less oil.* Even-Heat™ True Convection for consistent baking and roasting. Temperature Probe provides internal temperature updates on oven screen or your mobile device without opening the door. SatinGlide™ Roll-Out Extension Rack makes it easy to cook with large or heavy bakeware. PrintShield™ Finish coating resists fingerprints and smudges.

*When compared to deep frying.

Features

Even-Heat™ True Convection

features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

No Preheat Air Fry Mode

uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.*† *When compared to deep frying. †Dishwasher-safe basket sold separately.

SatinGlide™ Roll-Out Extension Rack

features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.

Temperature Probe

provides internal temperature updates on oven screen so you can control whether your roast beef tenderloin comes out rare, medium rare, or medium without opening the door.

Steam Clean & Self-Cleaning Cycles

keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.

EasyConvect™ Conversion System

Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

Additional Features

PrintShield™ Finish

Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

FIT System Limited Guarantee

If your new 27”or 30” wall oven doesn’t fit, you may get up to $300 for professional modifications. Existing cabinet modifications only. Exclusions apply. See terms.*
For full terms and details, visit https://www.kitchenaid.com/promotions/promotions.html

5.0 Cu. Ft. Oven Capacity

provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.

Smooth-Close Door

makes it easy to close the oven while your hands are full with special hinges that help prevent slamming. You can just nudge the door and it will glide to a soft, smooth close.

Proudly assembled in Cleveland, Tennessee U.S.A.

We take pride in building strong, reliable appliances for your home. These wall ovens are proudly assembled by hard-working employees in Cleveland, Tennessee.

Star-K Certified Sabbath Mode

To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.

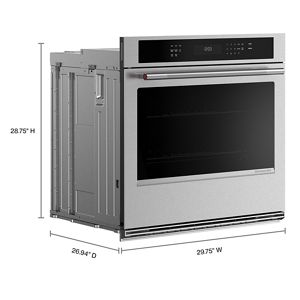

Specifications

Height:
28-3/4 inches
28-3/4 in
Width:
29-3/4 inches
29-3/4 in
Depth:
26-15/16 inches
26-15/16 in
Download Specs Sheet
Download Dimension Guide

Certifications

ADA Compliant

Yes

CUL

Yes

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Star K Certified

Star K Certified

UL

Yes

Oven Cavity Details

Bake Element Power

2800W

Broiler Element Power

4000W

Broiler Location

Top of Oven

Convection Element Power

3200 w

Convection Element Type

True Convection

Convection Functions

Bake, Broil, Air Fry, Convection Conversion

Door Broil Position

Closed

Door Removable

Yes

Hidden Bake Element

Yes

Installable Under Cooktop

Yes

Installable Under Oven

Yes

Interior Coating

Porcelain

Light Type

Halogen

Number of Bake Elements

2

Number of Broil Elements

1

Number of Oven Lights

2

Number of Oven Racks

2

Number of Rack Guides

6

Oven Cleaning Type

Self-Cleaning

Oven Cooking System

True Convection

Oven Rack Type

1 Standard Rack, 1 Gliding Roll-out Rack

Self-Cleaning Oven Racks

No

Temperature Conversion

Yes

Temperature Probe

Yes

Controls

Control Type

Electronic Touch

Display Color

White

Electronic Display Type

Digital

Language Conversion

English/French/Spanish

Light Control

Oven Light Touch Pad

Dimensions

Capacity

5 cu. ft.

Common Size

30 in

Cutout Depth

24 in

Cutout Height

28 in

Cutout Width

28-1/2 in

Depth

26-15/16 in

Depth Closed Excluding Handles

24-1/2 in

Depth Closed Including Handles

26-469/500 in

Depth Excluding Doors

23-1/4 in

Gross Weight

172-2/5 lbs

Height

28-3/4 in

Net Weight

167-2/5 lbs

Oven Capacity

5 cu. ft.

Oven Interior Depth

19 in

Oven Interior Height

18 in

Oven Interior Width

25 in

Width

29-3/4 in

Details

Air Fry

Yes

Cooktop Combinations

KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC056, KECC602, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569

Delay Clean

No

Flush Installation Approved

Yes

Fuel Type

Electric

LP Convertible

No

Oven Automatic Shut-Off

Yes

Oven Configuration

Single Oven

Oven Selections

Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Bake, Convect Broil, Cook Time Indicator, Delay Start, Sabbath Mode, Stop Time, Temperature Probe, Temperature-Sensor Baking, Timer

Oven Type

Single

Personalized Hardware

No

Power On Indicator Light

Yes

Exterior Details

Door Lock

Yes

Door Type

Metal & Glass

Oven Window Size

Extra Large

Electrical

Amps

20

Hz

60

Power Cord Included

No

Volts

240

Smart Compatibility

Connectivity

No

Smart Appliance

No

Works With

No
